PPGI & PPGL Steel Coil

The total thickness of the pre-painted galvalume steel coil is composed of the
base steel – coating -primer – top paint – protective layer thickness.
The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm.
The thinner the base steel thickness, the higher the price of the ppgi steel coil,
because the processing cost becomes higher.

+8619153115539

sales@chengshunmetal.com

E-mail

Get A Quality Quote

Online Customer Service

Product Details

Product information

Usually the paint coating material is polyester (PE) and the color of the back paint is white grey. The color can be customized according to the RAL color card or customer samples. Special patterns can be made, such as wood grain, flower print, camouflage, brick.

PPGI Production Process Flow Chart

Unrolling → Stitching machine → Entrance loop → Pretreatment → Initial coating → Bake → Cool down → Fine coating → Bake → Embossed film → Export loop → Inspection station → Cut → Coiling
In the above process, if the cleaning degreasing process is not handled well, the adhesion of the primer of the color coated plate to the galvanized sheet is not good, and it is easy to cause the top coat of the color coated steel coil to fall off during the press forming process.

Coating primer	Top paint coating
1) Epoxy primer, good adhesion, water resistance, alkali resistance, chemical corrosion resistance, poor single toughness. 2) Polyester primer, good adhesion, good flexibility, sensitive to humid environment, chemical resistance is not as good as epoxy primer. 3) Acrylic primer, good adhesion, good toughness and high pretreatment requirements. 4) polyurethane primer, chemical resistance, abrasion resistance, durability, toughness	1) Polyester resin, good adhesion, molding and outdoor durability.
	2) Silicon Modified Polyester (SMP)
	3) High weather resistant polyester (HDP)
	4) Polyvinyl fluoride (PVC)
	5) Polyvinylidene fluoride/fluorocarbon (PVDF) It has good formability and color retention, good outdoor durability and powder resistance, solvent resistance, limited color and high price.

Product details
Color Coated Steel Feature Excellent Decorativeness, Bendability, Corrosion Resistance, Coating Adhesion And Color Fastness.They Are Ideal Substitutes For Wood Panels In The Construction Industry Because Of Their Good Economic Features Such As Convenient Installation, Conservation Of Energy And Resistance To Contamination. Color Steel Sheets With Surface Texturing On The Surface Has Extremely Superb Anti-Scratch Qualities.Can Be Produced In Various Colors, And Has Credible Quality And Can Be Mass-Produced Economically.

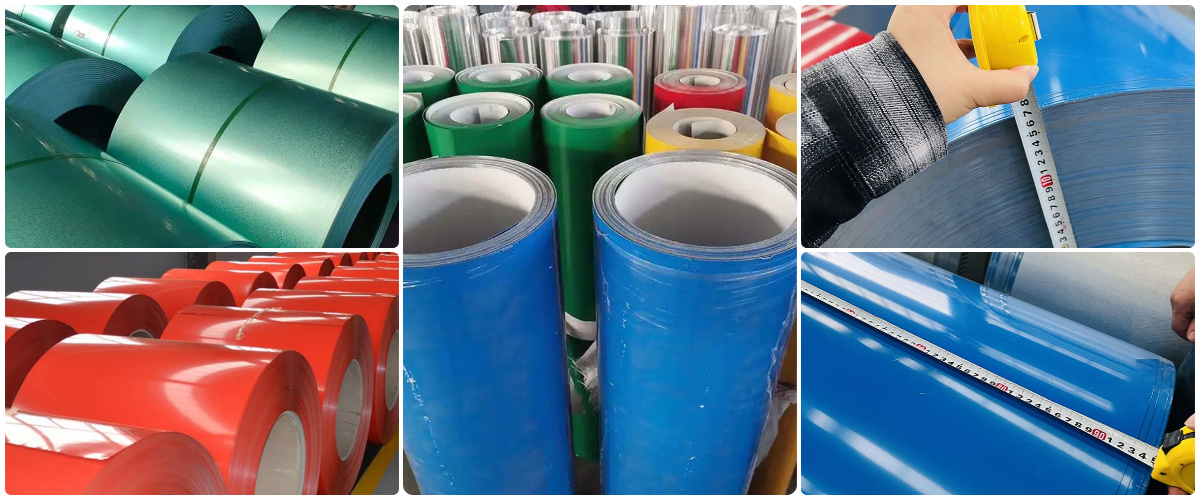

Product Picture

Packaging and transportation&Customer feedback

Product Certificate

Shandong Chengshun Metal Materials Co., Ltd.is a comprehensive company dealing in high-quality steel products, with a superior geographical location and very convenient transportation. The company has a complete and scientific quality system, and has been recognized by the industry for its integrity, strength and product quality. Always adhere to the tenet of high quality, low cost, fast pace and excellent service. Our products have passed the "IS09001" qualtly system cerification, own CE cerificate and SGS test report.

APPLICATION FIELD

Our main manufactures are stainless steel, galvanized steel, carbon steel and etc. That apply to engineering, coal mine, textile, electric power, boiler, machinery, We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your Inquiry and we will come back to as soon as possible.
