Product Details

Tinplate Coil Description

Tin-plated steel coil, commonly known as tinplate coil is a steel product with a stampable thin steel coil as the base, tin plating on the surface, and multiple protective films. It has the characteristics of corrosion resistance, non-toxic, odorless, glossy surface, light weight, high strength. In addition, it is easy to weld and process, and has strong adaptability to ambient temperature. Single cold-reduced tinplate coil can be supplied with either a bright, silver, stone or matt finish, and the finish required shall be specified at the time of ordering. Single reduced cold-rolled tinplate coil is generally specified in nominal thicknesses that are multiples of 0,005 mm, from 0,150 mm up to and including 0,600 mm. It is widely used in food, beverage, grease, chemical, paint, paint, aerosol cans, bottle caps and many other daily necessities packaging.

Product Parameters

Product Name	Tinplate Coil
Thickness	0.18mm-0.50mm
Width	260mm-980mm
Length	Support customization
Tin Coating	General: 2.8g or 5.6g, can be produced according to your needs
Substrate Type	MR / SPCC / L / D
Reference Standard	GB/T 2520, JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203

Surface State of Tinplate

Surface State	Features
Light Surface	Electroplated tin smooth raw material strip after melting treatment to obtain the glaze,Smooth surface with very fine grindstone pattern
Stonetextured Surface	Electroplating tin raw material with the glaze obtained after melting treatment,Grindstone pattern with certain direction
Silvercolor Surface	Electroplating tin raw material with the glazed surface obtained after melting treatment, the surface is rough and dull
Mattless Surface	The surface of the substrate is rough and dull, and the tin plating layer is not soft melting

Substrate Type

Substrate Type	Introduction
MR	The most general steel, steelmaking impurity residue less, excellent mechanical properties and corrosion resistance
L	Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.), and the inner surface of the food cans for iron high corrosion resistance tinplate substrate steel, such tinplate is often calledKPlate
D	Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial
SPCC	Chinese characteristics, using ordinary hot rollingSPHCProduces, usually used for miscellaneous tank purposes.

Coating Weight

Classification	Representation of Tin Coating Weight	Tin Plating Nominal Weight (g/m2)	Minimum Average Tin Plating Weight (g/m2)
Equal Tin Plating (E)	1.1/1.1	1.1/1.1	1.8
	2.2/2.2	2.2/2.2	4.0
	2.8/2.8	2.8/2.8	5.0
	5.6/5.6	5.6/5.6	10.5
Differentiated Tin Plating (D/A)	2.2/1.1	2.2/1.1	2.0/0.9
	2.8/1.1	2.8/1.1	2.25/0.9
	5.6/1.1	5.6/1.1	5.05/0.9
	2.8/2.2	2.8/2.2	2.25/2.0
	5.6/2.2	5.6/2.2	5.05/2.0
	5.6/2.8	5.6/2.8	5.05/2.25

Chemical Composition

No.	C	Si	Mn	S	P	Cu	Ni	Cr	Mo
D	0.12	0.03	0.6	0.05	0.02	0.2	0.15	0.1	0.05
L	0.13	0.03	0.6	0.05	0.15	0.03	0.04	0.06	0.05
MR	0.13	0.03	0.6	0.05	0.2	0.2	0.2	0.1	0.05

Mechanical Properties & Applications

Standard Name	Nominal Hardness HR30TS	Strong Yield MPA	Scope of Application
T-1	49	230 /-50	Drawing requirements, drawn ironing cans, nozzles, nozzles, closures
T-2	53	245 /-50	Ring and plug, dome, closure, shallow pull and special tank parts
T-2.5	55	260 /-50	Battery cell, small can cover and body
T-3	57	275 /-50	Cans and cans, large diameter caps, crown caps
T-3.5	59	290 /-50	Can body, closure and crown lid
T-4	61	340 /-50	Can body, closure and crown lid
T-5	65	480 /-50	Cans and cans

Ordering Notes

The ordering elements for tin plating generally include: standard grade (including steel grade code, annealing method and other information such as MR T-3 CA), size (the default order is thickness * width * length, tin plating amount ((different thickness plating) Tin needs to add A/D as the marking line mark, if not, no marking line will be marked), surface, order quantity, etc.
When ordering tin plating, please confirm with our sales staff the end use, such as canbody, ends, twist off caps, crown cork, EOE, etc., as well as the contents, special contents such as milk powder, high protein food, mushrooms, fruits, etc.;

Product Description 1:

Elevate your manufacturing processes with our premium-grade carbon steel coils. Crafted from high-quality carbon steel, these coils are engineered to deliver exceptional strength, durability, and reliability. Whether you're fabricating automotive components, machinery parts, or structural elements, our coils provide the perfect blend of performance and affordability. With precision manufacturing and strict quality control, you can trust our carbon steel coils to meet your exact specifications and exceed your expectations.

Product Description 2:

Experience unmatched versatility and efficiency with our top-of-the-line carbon steel coils. Engineered for durability and consistency, these coils are the ideal choice for a wide range of industrial applications. From construction to manufacturing, our coils provide the strength and reliability you need to tackle any project with confidence. With excellent weldability and formability, they enable seamless fabrication and assembly, ensuring smooth production processes and superior results.

Product Description 3:

Unlock the potential of your projects with our high-performance carbon steel coils. Designed to meet the demands of modern industry, these coils offer outstanding strength, toughness, and machinability. Whether you're building infrastructure, manufacturing machinery, or creating automotive components, our coils provide the durability and versatility you need to succeed. Backed by our commitment to quality and customer satisfaction, our carbon steel coils are your trusted partner for success.

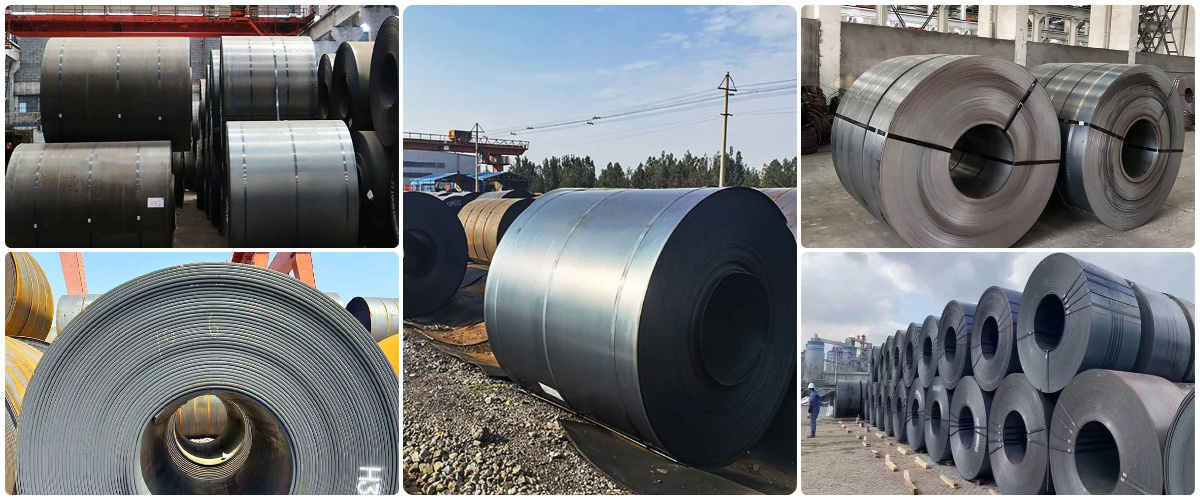

Product Picture
