304/304L Stainless steel channel

304 stainless steel is the most widely used chromium nickel stainless steel. As a widely used steel, it has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; Good hot workability such as stamping and bending, no heat treatment hardening phenomenon (service temperature -196 ℃ ~ 800 ℃). It is corrosion-resistant in the atmosphere. If it is an industrial atmosphere or a heavily polluted area, it needs to be cleaned in time to avoid corrosion. Suitable for food processing, storage and transportation. It has good machinability and weldability.

+8619153115539

sales@chengshunmetal.com

E-mail

Related Products

Product Details

Name	Stainless Steel Channel
Width	50mm-2000mm or customized
Thickness	0.3mm-60mm
Length	1-12m or as customer request
Standard	ASTM JIS AISI GB DIN EN
Surface Finished	BA, 2B,NO.1, NO.4, 4K, HL ,8K
Certification	ISO, SGS, BV
Technique	Hot rolled or cold drawing
Edge	Mill Edge /Slit Edge
Quality	SGS Inspection
Main market	Asia/Europe/ South America
Delivery time	Within 7-10 Working Days
Payment Terms	T/T L/C and Western Union etc.

Chemical Composition

Grade	W.nr	DIN	C	Cr	Ni	Mo	N	Mn	Other
201/201L	-	-	0.15	16.0-18.0	3.50/5.50	-	0.25	5.5-7.5	0.25N
301	1.4310	X12CrNi177	0.15	16.0-18.0	6.00/8.00	-	0.1	2	-
303	1.4305	X12CrNi188	0.15	17.0-19.0	8.00/10.00	0.60*	0.1	2	-
304	1.4350	X5CrNi189	0.08	18.0-20.0	8.00/10.50	-	0.1	2	-
304L	1.4306	X2CrNi1911	0.03	18.0 - 20.0	8.0-12.0	-	0.1	2	-
321	1.4541	X10CrNiTi189	0.08	17.0-19.0	9.0-12.0	-	0.1	2	Ti 5x(C+N)
316	1.4435	X2CrNiMo1812	0.08	16.0-18.0	10.0-14.0	2.0-3.0	0.1	2	-
316L	1.4436	X2CrNiMo1812	0.03	16.0-18.0	10.0-14.0	2.00-3.00	0.1	2	-
309	1.4828	X15CrNiSi2012	0.08	22.0-24.0	12.0-15.0	-	-	2	-
310S	1.4845	X12CrNi2521	0.08	24.0-26.0	19.0-22.0	-	-	2	-
904L	1.4539	X2NiCrMoCu25205	0.02	19.0-23.0	23.0-28.0	4.00-5.00	0.1	2	-
409	1.4512	X6CrTi12	0.03	10.5-11.7	0.5	-	0.03	-	Ti 6x(C+N) to .50
430	1.4016	X8Cr17	0.12	16.0-18.0	0.75	-	-	1	-
439	1.4510	X3CrTi17	0.03	17.0-19.0	0.5	-	0.03	1	Ti [0.20+4(C+N)] to 1.10Al .15 max.
2205	1.4462	X2CrNiMoN2253	0.03	22.0-23.0	4.5-6.5	3.0-3.5	0.14-0.20	2	-
2507	1.4410	X2CrNiMoN2574	0.03	24.0-26.0	6.0-8.0	3.0-5.0	0.24-0.32	1.2	-
s32760	1.4501	X2CrNiMoCuWN	0.03	24.0-26.0	6.0-8.0	3.0-4.0	0.20-0.30	1	W 0.50-1.00
1.4529	-	X1NiCrMoCuN	0.02	20	25	6.5	0.15	-	Cu 1.0
1.4362	-	X2CrNiN23-4	0.02	23	4.8	0.3	-	-	-
254SMO	1.45475	42CrMo4	0.01	20	18	6.1	0.02	-	-

Stainless Steel Profiles

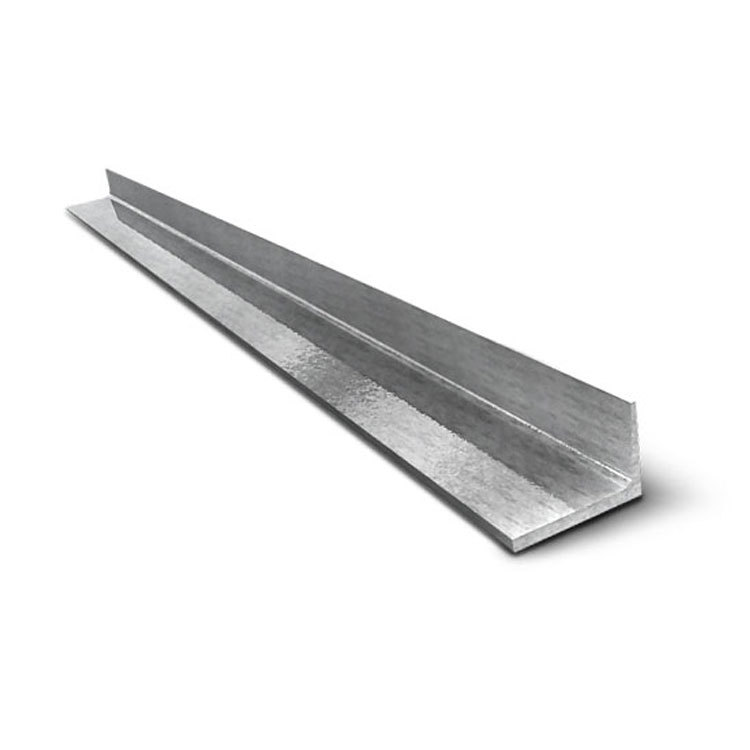

1. Stainless Steel Angle Bars:

Applications: Used for structural support, framework, bracing, and reinforcement in construction, architecture, machinery, and equipment.
Advantages: Provides structural stability, corrosion resistance, and aesthetic appeal. Can be easily welded, drilled, and machined.
Manufacturing Process: Produced through hot rolling or cold drawing processes, followed by annealing and surface treatment.
Suitable Industries: Construction, engineering, architecture, machinery manufacturing, and automotive sectors.

2. Stainless Steel H-Beams:

Applications: Utilized as load-bearing structural elements in construction, bridges, platforms, and industrial buildings.
Advantages: Offers high strength-to-weight ratio, corrosion resistance, and durability. Allows for easy installation and maintenance.
Manufacturing Process: Produced through hot rolling or cold drawing processes, followed by heat treatment and surface finishing.
Suitable Industries: Construction, infrastructure development, shipbuilding, and heavy machinery manufacturing.

3. Stainless Steel Wire:

Applications: Used for fencing, wire mesh, cable ropes, springs, fasteners, and electrical conductors.
Advantages: Provides high tensile strength, corrosion resistance, and ductility. Offers flexibility and durability in various applications.
Manufacturing Process: Produced through wire drawing from stainless steel rods or coils, followed by annealing and surface treatment.
Suitable Industries: Construction, agriculture, automotive, aerospace, marine, and electrical engineering sectors.

4. Other Stainless Steel Profiles (e.g., Channels, Flat Bars, Round Bars):

Applications: Channels are used for framing, edging, and mounting; flat bars for braces, supports, and decorative trims; round bars for shafts, axles, and fasteners.
Advantages: Offers versatility in design and application, corrosion resistance, and ease of fabrication.
Manufacturing Process: Produced through hot rolling, cold drawing, or extrusion processes, followed by heat treatment and surface finishing.
Suitable Industries: Construction, manufacturing, machinery, transportation, and architectural sectors.

In summary, stainless steel profiles encompass a range of shapes and forms, each tailored for specific applications in various industries. They offer advantages such as corrosion resistance, durability, strength, and versatility, making them indispensable materials in modern engineering and construction projects.

Product Picture

Packaging and transportation&Customer feedback

Product Certificate

Shandong Chengshun Metal Materials Co., Ltd.is a comprehensive company dealing in high-quality steel products, with a superior geographical location and very convenient transportation. The company has a complete and scientific quality system, and has been recognized by the industry for its integrity, strength and product quality. Always adhere to the tenet of high quality, low cost, fast pace and excellent service. Our products have passed the "IS09001" qualtly system cerification, own CE cerificate and SGS test report.

APPLICATION FIELD

Our main manufactures are stainless steel, galvanized steel, carbon steel and etc. That apply to engineering, coal mine, textile, electric power, boiler, machinery, We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your Inquiry and we will come back to as soon as possible.
